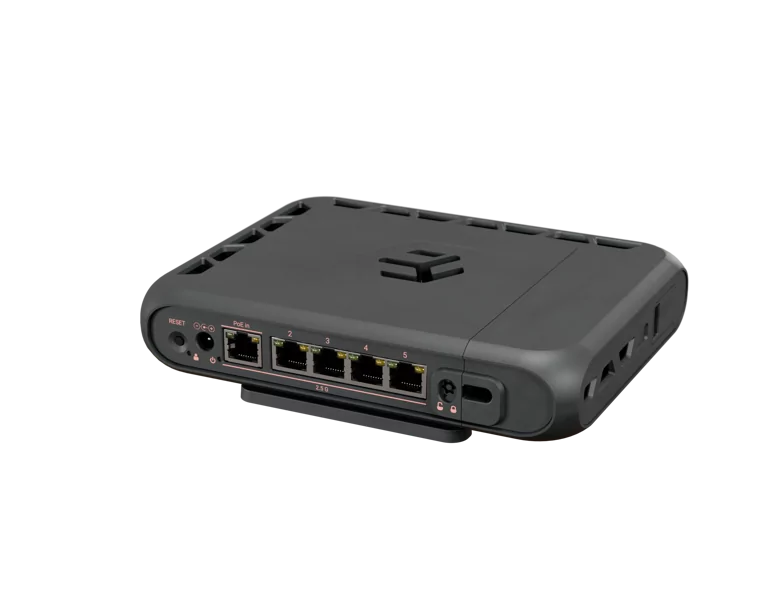

MikroTik hAP be3 Media BE9300 Wireless Tri-Band 2.5G Router

Product Review Video:

Triple band 2x2 MIMO Wi-Fi 7

5 x 2.5G Ethernet

Quad-core up to 1.5 GHz ARM CPU

USB-C + 2x USB-A

Thread radio

PoE-in and DC jack

Bluetooth 5.4

Container support

microSD card slot

Triple-band 2x2 MIMO Wi-Fi 7

Is this heaven?

Specification

Specifications

• Product code MA53UG+HbeH
• ArchitectureARM 64bit
• CPUIPQ-5322
• CPU core count4
• CPU nominal frequencyUp to 1.5 GHz (auto)
• CPU Threads count4
• Switch chip modelQCA8386
• RouterOS license6
• Operating SystemRouterOS v7
• Size of RAM2 GB
• Storage size512 MB
• Storage typeNAND
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-30°C to 50°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate574 Mbit/s
• Wireless 2.4 GHz Number of chains2
• Wireless 2.4 GHz standards802.11b/g/n/ax/be
• Antenna gain dBi for 2.4 GHz4
• Wireless 2.4 GHz chip modelIPQ-5322
• Wireless 2.4 GHz generationWi-Fi 7
• Wireless 5 GHz Max data rate1200 Mbit/s
• Wireless 5 GHz Number of chains2
• Wireless 5 GHz standards802.11a/n/ac/ax/be
• Antenna gain dBi for 5 GHz7.5
• Wireless 5 GHz chip modelQCM-8083
• Wireless 5 GHz generationWi-Fi 7
• WiFi speedAX1800
• Wireless 6 GHz Max data rate5764 Mbit/s
• Wireless 6 GHz Number of chains2
• Wireless 6 GHz standards802.11ax/be
• Antenna gain dBi for 6 GHz8
• Wireless 6 GHz chip modelQXM-8086
• Wireless 6 GHz generationWi-Fi 7

Ethernet

• Number of 2.5G Ethernet ports5

Peripherals

• Number of USB ports3
• USB slot typeUSB 3.0 type A
• Max USB current (A)1.5

Powering

• Number of DC inputs2 (DC jack, PoE-IN)
• DC jack input Voltage24-57 V
• Max power consumption29 W
• Max power consumption without attachments20 W
• PoE in802.3af/at
• Cooling typePassive
• PoE in input Voltage24-57 V

Certification & Approvals

• CertificationCE, FCC, IC, EAC, ROHS
• IP20

Other

• CPU temperature monitorYes
• Bluetooth version5.4

Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Ethernet test results

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Documents

Brochure

Read product brochure and find out about features and specification

.PDF
