TPE-TG80g (Version v2.0R)

  • 8 x Gigabit PoE+ ports (up to 30 watts per PoE+ port)
  • Up to 30 W per port with 105 W total power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • 16 Gbps switching capacity
  • Sturdy metal case
  • Up to 75% GREENnet power savings
  • Limited Lifetime Warranty*

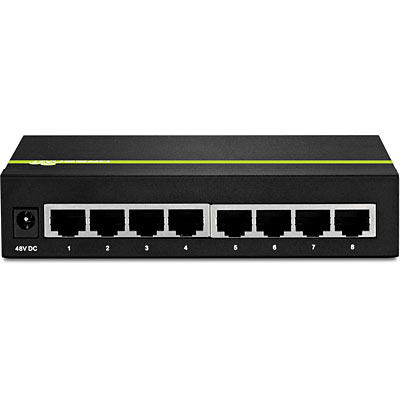

TRENDnet’s 8-Port Gigabit GREENnet PoE+ Switch, model TPE-TG80g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers eight Gigabit PoE+ ports which supply up to 30 watts of power per port for devices such as high power wireless access points, PTZ (Pan / Tilt / Zoom) Network Cameras, and VoIP telephony systems.

Auto sensing technology delivers 30 watts to 802.3at PoE+ devices (up to 3 devices), 15 watts to 802.3af PoE devices, and only data to non-PoE devices. GREENnet technology reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 16 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case and quickly adds PoE+, PoE, and non-PoE devices to your network.

  • Hardware
  • Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3at Power over Ethernet (PoE+)
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3X Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
  • Ports
  • 8 x Gigabit Auto-MDIX PoE / PoE+ ports
  • Data Transfer Rate
  • Ethernet: 10/20 Mbps (Half / Full Duplex)
  • Fast Ethernet: 100/200 Mbps (Half / Full Duplex)
  • Gigabit: 2000 Mbps (Full Duplex)
  • Forwarding Rate
  • 1,000 Mbps: 1,488,000 pps
  • 100 Mbps: 148,800 pps 1
  • 10 Mbps: 14,880 pps
  • Data RAM Buffer
  • 96 Kbytes
  • Address Table
  • 1K MAC entries
  • Switch Fabric
  • 16 Gbps
  • Power
  • Input: 100-240V 50/60 Hz, 2.1A
  • Output: 52VDC, 2.31A External Power Adapter
  • Diagnostic LEDs
  • Power, PoE, 1000 Mbps, Link/Activity
  • Power Consumption
  • Min: 5 watts (standby)
  • Max: 120 watts
  • PoE Max: 105 watts
  • (7 x 15 watts PoE devices connected or 3 x 30 watts PoE+ devices connected)
  • Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 90°C (-4° ~ 194°F)
  • Humidity
  • Max 90% (non-condensing)
  • Dimensions
  • 142 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)
  • Weight
  • 400 g (14 oz.)
  • Certifications
  • CE, FCC
  • PoE
  • Power over Ethernet
  • Up to 15.4 watts for PoE Up to 30 watts for PoE+ PoE: pin 3, 6 for power+ and pin 1, 2 for power- (mode A)



Package Contents

  • TPE-TG80g
  • Quick Installation Guide
  • Power Adapter (52V DC, 2.31A)

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • Supports PoE Class 2 (7 watts) , 3 (15.4 watts), and 4 (30 watts)
  • 8 x Gigabit Auto-MDIX PoE / PoE+ ports
  • Provides up to 30 watts for PoE+
  • Provides up to 15.4 watts for PoE
  • Automatically detects the PoE class level of a Powered Device
  • 16 Gbps switching fabric
  • Forwarding Rate: 1000 Mbps (1,488,000 pps), 100 Mbps (148,800 pps), 10 Mbps (14,880 pps)
  • Status LEDs: System Power, PoE, 1000 Mbps, and Link/Activity
  • 1K Mac address entries
  • 96 Kbyte memory buffer
  • Full wire-speed non-blocking reception and transmission
  • Store-and-forward switching method
  • Back pressure Flow Control for Half-Duplex mode
  • IEEE 802.3x Flow Control for Full-Duplex mode
  • Power saving technology powers down unused ports and when a connected device is in standby mode
  • Jumbo Frame support up to 9K
  • Plug and Play
  • Sturdy metal case
