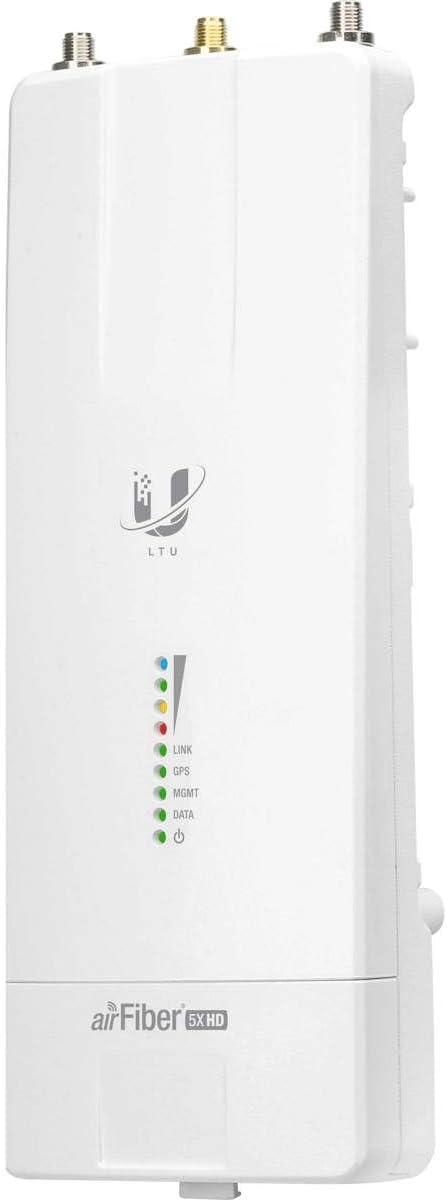

Ubiquiti AF-5XHD-U 5GHz airFiberX PtP 1Gbps Radio
AF-5XHD-U
Delivery
Payment options
Our advantages
Manufacturer's warranty .
SMS notification .
Return and exchange .
Different payment methods .
Best price .
|
Complete Custom Hardware for the WISP,
right down to the Silicon

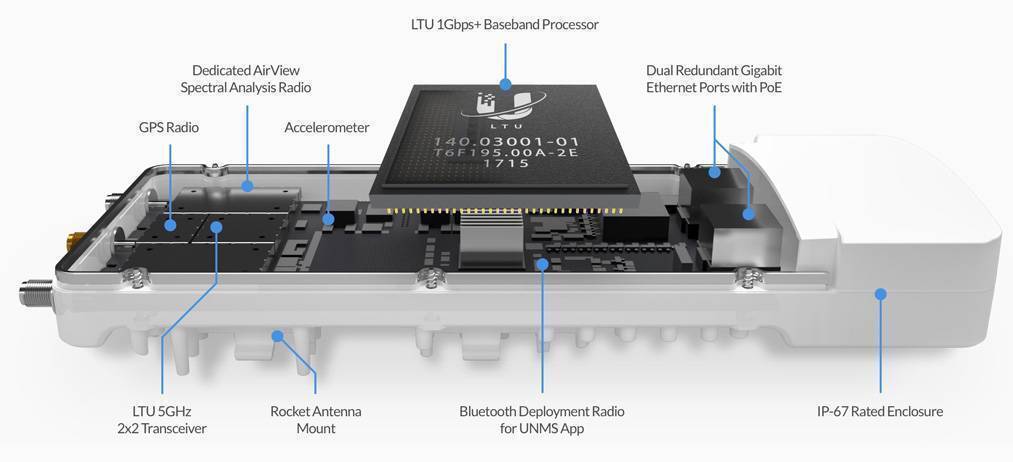

Our core communications processing engine surpasses all of the limitations inherent to generic WiFi chips. |
|
|---|---|
 |
|
|
Game-Changing LTU Technology

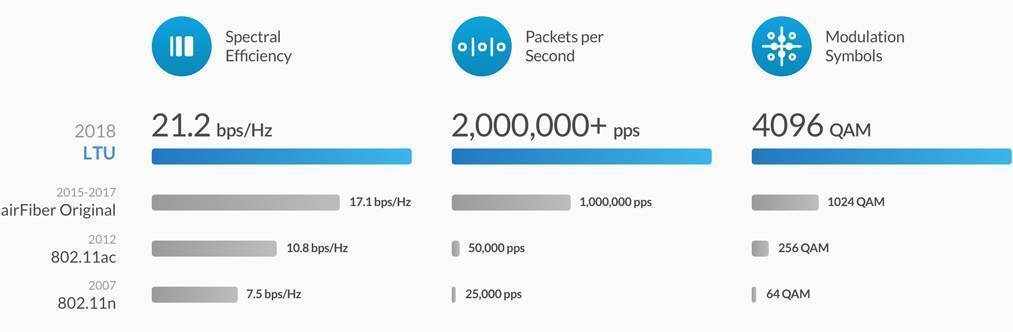

Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year. |
|
 |
|

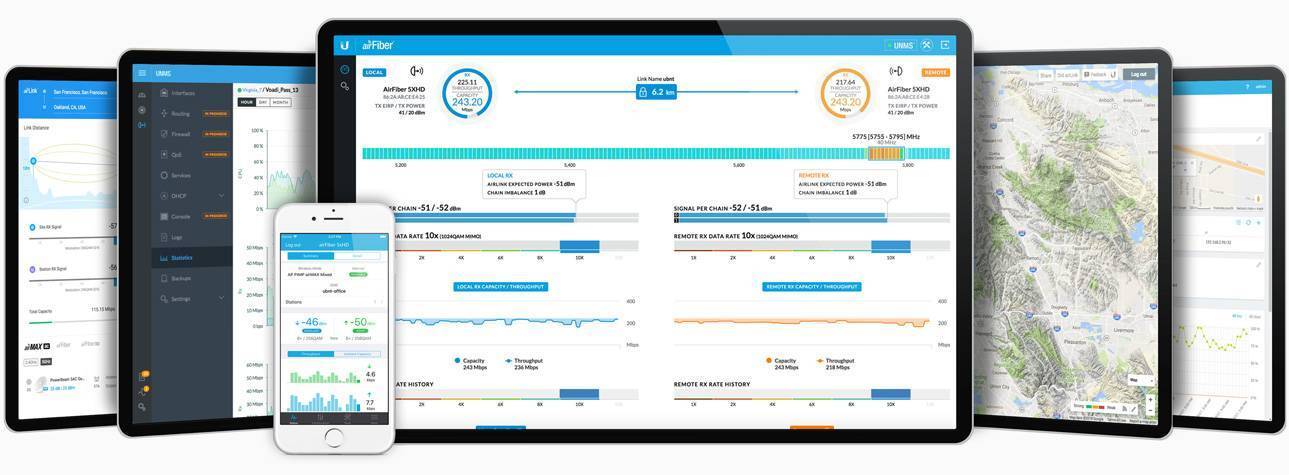

| Industry Leading Complete Software Suite | |
 |
|
 |
|
|
|
|
IP-67 Durability |
|
| Model Comparison | ||
|---|---|---|
 |
 |
|
| AF-5X | AF-5XHD | |
| - | ✔ | IP-67 |
| External, Magnetic | External, Magnetic | GPS |
| 500+ Mbps | 1Gbps+ | Max Throughput |
| 1,000,000 | 2+ Million | Max PPS |
| 17,1 bps/Hz | 21,2 bps/Hz | Spectral Efficiency |
| 1024 QAM | 4096 QAM | Modulation Symbols |
| 10/20/30/40/50 MHz |
10/20/30/40/50 /60/80/100 MHz |
Spectral Widths |
| - | ✔ | UNMS App Bluetooth |
The manufacture company
Ubiquiti Networks
Product Specification
TX Power
29 dBm
Range
100+ km

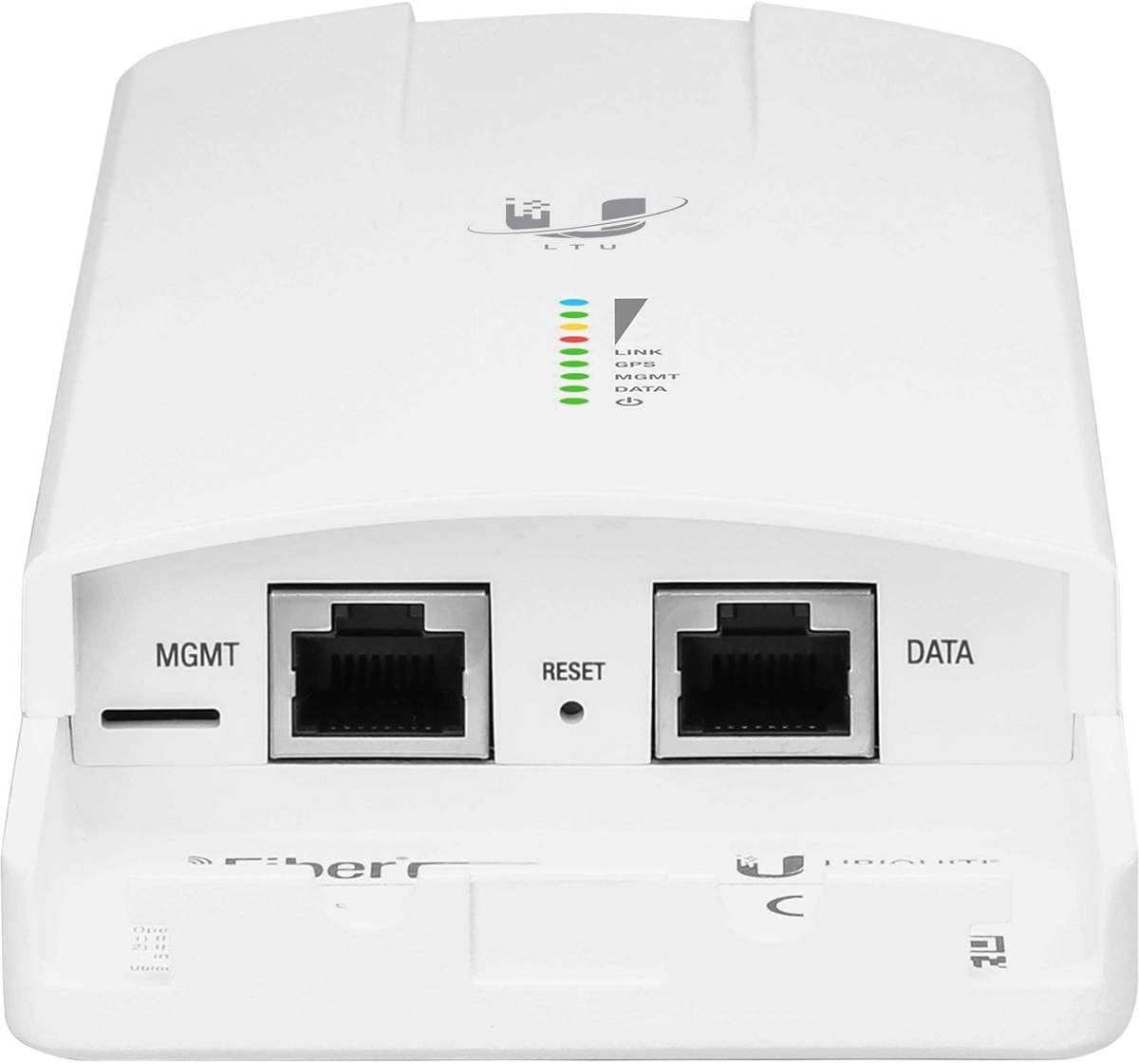

Ports
- (2) GbE RJ45 ports
Power Supply
24V, 1A Gigabit PoE Adapter (Included)
Dimension
- 224x 82 x 48 mm (8.8 x 3.2 x 1.9")

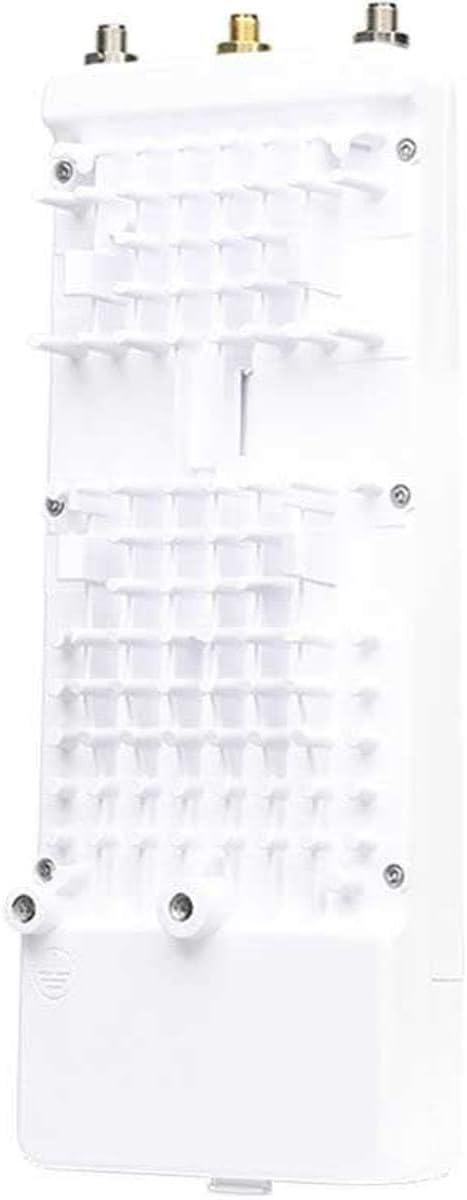

Mounting Kit
airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
