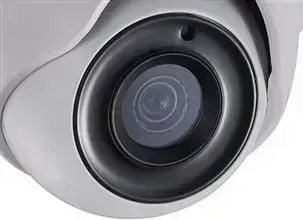

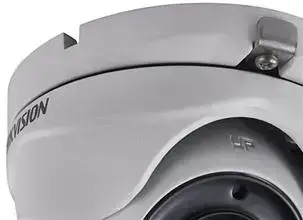

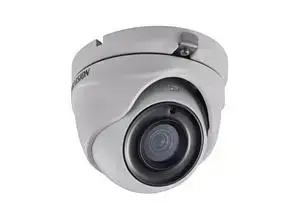

Hikvision 3 Mega Pixel HD-TVI EXIR Turrent Dome, 20M IR, Metal, 2.8mm
DS-2CE56F1T-ITM-B28
Delivery
Payment options
Our advantages
Manufacturer's warranty .
SMS notification .
Return and exchange .
Different payment methods .
Best price .
| Camera | ||
|---|---|---|
| Image Sensor: | 3MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2052(H)*1536(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: |
2.8mm/3.6mm/6mm optional Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm) |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1920 ×1536@18fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
| Menu | ||
|---|---|---|
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| Function: | Digital Noise reduction; Mirror; SMART IR | |
| General | ||
|---|---|---|
| Operating Conditions: |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: |
Max. 5W |
|
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Communication : |
Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 91mm×82.6mm×68.3mm (3.58"×3.25"×2.69") | |
/p>
The manufacture company
Hikvision
Product Specification
Sensor
3MP CMOS Image Sensor
video output
- 1 Analog HD output
Lens
- 2.8mm / M12
Video capture
- 1920 ×1536@18fps
Video resolution
- 2052(H)*1536(V)
Power Supply
12 VDC±15%
Dimension
- 91mm×82.6mm×68.3mm (3.58"×3.25"×2.69")
Max. Power Consumption
- Max. 5W
Operating Temperature
- -40 °C - 60 °C (-40 °F - 140 °F)
