Aruba AP-203H (RW) Flex-radio 802.11ac 2x2 Unified Hospitality AP with
The Aruba 203H Series Unified Hospitality Access Points,
cost-effective 802.11ac APs with single- or dual-radio mode, deliver
high-performance Wi-Fi networking for hospitality and branch
offices, while minimizing costs for low-to-moderate density areas.
The compact Aruba 203H AP is software-configurable to operate in
either 1x1 dual-radio mode, or 2x2 single-radio mode. It supports up
to 867 Mbps in the 5 GHz band or up to 400 Mbps in the 2.4 GHz band
in single-radio 2x2 mode. In dual-radio 1x1 mode, the maximum data
rates for the 203H AP are up to 433 Mbps in the 5 GHz band and 200
Mbps in the 2.4 GHz band.
Cost-effective IEEE 802.11ac access point with configurable
single- or dual-radio mode.
Supports up to 867 Mbps in the 5 GHz band or up to 400 Mbps in
the 2.4 GHz band in single-radio 2x2 mode and, in dual-radio 1x1
mode, up to 433 Mbps in the 5 GHz band and 200 Mbps in the 2.4
Flexible IEEE 802.11ac Radio Architecture
Aruba 203H Series Unified Hospitality Access Points are
software-configurable to operate in either 1x1 dual-radio
mode, or 2x2 single-radio dual-band mode.
The 203H AP supports up to 867 Mbps in the 5 GHz band (with
2SS/VHT80 clients) or up to 400 Mbps in the 2.4 GHz band
(with 2SS/VHT40 clients). In 1x1 dual-radio mode, these
maximum speeds are up to 433 Mbps and 200 Mbps respectively.

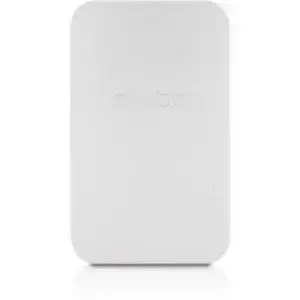

Aruba 203H Series Unified Hospitality Access Points ship
with everything you need to deploy as a wall-mounted
(hospitality) AP, attaching directly to a standard
single-gang data wall-box.
The 203H can also be easily converted to a desk-mounted
(remote) AP, using an optional accessory stand.
This AP can be deployed in either controller-based (ArubaOS)
or controllerless (InstantOS) mode.
RF Management to Deliver Reliable, High-performance WLANs
Aruba 203H Series Unified Hospitality Access Points, with
Adaptive Radio Management (ARM) technology, automatically
assign channel and power settings, provide airtime fairness
and ensure that APs stay clear of all sources of RF
interference to deliver reliable, high performance WLANs.
The 203H AP can be configured to provide part-time or
dedicated air monitoring for wireless intrusion protection,
VPN tunnels to extend remote locations to corporate
resources, and wireless mesh connections where Ethernet
drops are not available.
Help Secure Your Wireless Network
Aruba 203H Series Unified Hospitality Access Points with
integrated wireless intrusion protection offer threat
protection and mitigation, and eliminate the need for
separate RF sensors and security appliances.
IP reputation and security services identify, classify, and
block malicious files, URLs and IPs, providing comprehensive
protection against advanced online threats.
The integrated Trusted Platform Module (TPM) helps provide
secure storage of credentials and keys as well as secure
The manufacture company
No. of antennas
2.4 GHz, 5 GHz

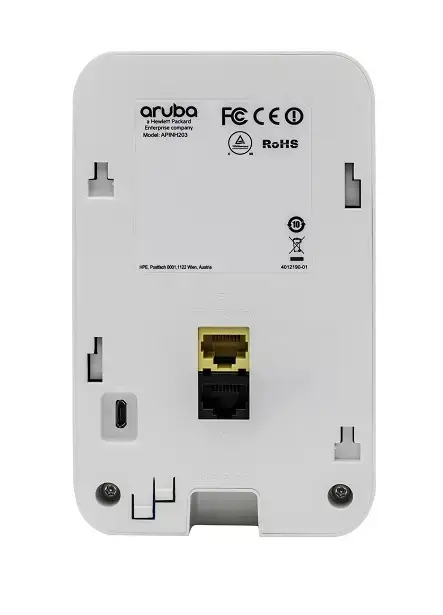

1 x 1000Base-T (PoE) - RJ-45 ¦ 2 x pass-through - RJ-45
