TRENDnet 300Mbps Wireless-N Access Point

Ask a question
TEW-638APB
125.00 SR
Out of stock
Add to wish list
Delivery
Payment options
Our advantages

Manufacturer's warrantyGuarantee for all purchased goods in our online store is Manufacturer's warranty

SMS notificationYou receive SMS messages about each stage of your order.

Return and exchange - no problemYou can return the items purchased within 7 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


The versatile N300 Wireless Access Point is designed to create a scalable high speed wireless n network or to connect a wired device to an existing wireless network.

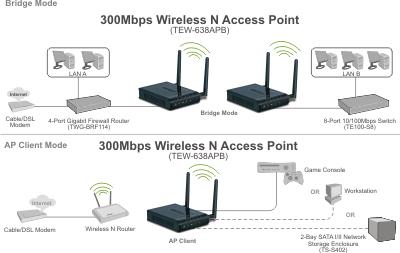

Use multiple 300Mbps Wireless N Access Points together to extend your network using Wireless Distribution System (WDS), Wireless Bridge and AP Client Modes.
Expand a wireless network without running additional cabling with Wireless Distribution Service (WDS) technology by connecting multiple access points wirelessly. Use Wireless Bridge Mode to connect devices such as game consoles, printers and digital video recorders (DVR) to your wireless network. Advanced antenna technology (MIMO) increases wireless coverage and WPA / WPA2 encryption protects your wireless network.
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

RoHS Compliant

  • Compact high performance wireless n access point
  • Wireless Bridge mode for Ethernet-to-wireless bridging function
  • Works as an access point and a wireless adapter
  • Compliant with IEEE 802.11n (draft 2.0), IEEE 802.11g and 802.11b standards
  • compatible with 802.11b/g/n networks
  • Up to a 300Mbps data rate using an 802.11n (draft 2.0)  connection
  • Expand a wireless network using AP client mode or Wireless Distribution System (WDS)
  • Support for the 802.11e Quality of Service (QoS) standard
  • Low interference and high susceptibility deliver reliable performance
  • 2 removable antennas to support high speed performance and expanded coverage
  • Supports Wi-Fi Protected Setup (WPS) feature allowing you to integrate other WPS devices into your network quickly
  • Indoor coverage up to 100 meters (328ft.)*
  • Outdoor coverage up to 300 meters (984ft.)*
  • Supports Windows 2000/XP/2003 server/Vista Operating Systems
  • Hardware
  • Standards
  • IEEE 802.11n draft 2.0, IEEE 802.11b, IEEE 802.11g, 2.0 and 802.11e
  • Interface
  • 1 x 10/100Mbps Auto-MDIX LAN port
  • LED Indicators
  • Power, LAN, WPS, and Wireless
  • Buttons
  • Reset button – restores factory default settings WPS button- enables WPS function
  • Power Supply
  • 12 V DC 0.5A external power adapter
  • Dimensions (LxWxH)
  • 120 x 26 x 88 mm (4.7 x 1.0 x 3.4 in.)
  • Weight
  • 145g (5.11oz)
  • Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F), Storage: -20°C ~ 60°C (-4° ~ 140° F)
  • Humidity
  • Operating: 5% ~ 90% Non-Condensing, Storage: 5% ~ 90% Non-Condensing
  • Wireless
  • Module Technique
  • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-Carrier modulations
  • WDS
  • Enable/Disable Wireless Distribution System support
  • Access Control

  • MAC Address Filter (Up to 64entries)

  • Antenna
  • 2 x 2dBi detachable antennas
  • Frequency
  • 2.412 - 2.462 GHz (North America) 2.412 - 2.472 GHz (Europe)
  • Media Access Protocol
  • IEEE 802.11
  • Data Rate (Auto Fallback)
  • 802.11n Draft 2.0: up to 300Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6 Mbps 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1 Mbps
  • Output Power
  • 802.11n: 11dBm (typical)@ MCS15/ & HT40 802.11g: 15dBm (typical) @ 54Mbps 802.11b: 18dBm (typical) @ 11Mbps
  • Receiving Sensitivity
  • 802.11n: -68dBm (typical) @ MCS15/HT20, -66dBm (typical) @ MCSI15/HT40 802.11g: -72dBm (typical) @ 54Mbps 802.11b: -84dBm (typical) @ 11mpbs
  • Encryption
  • 64/127-bit WEP (HEX & ASCII), WPA/WPA2 Radius, WPA/WPA2-PSK Encryption
  • Channels
  • 1-11 (FCC), 1-13 (ETSI)



Package Contents

  • TEW-638APB
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User’s Guide)
  • 1x Cat. 5 Ethernet cable (0.6m / 2 ft.)
  • Power adapter (12V DC, 0.5A)



The manufacture company:
TRENDnet
Product Specification
Operating Frequency:
  • 2.412 - 2.462 GHz (North America) 2.412 - 2.472 GHz (Europe)
LAN Port 10/100:
1 x 10/100Mbps Auto-MDIX LAN port
Antenna Gain:
  • 2 x 2dBi detachable antennas
المعيار اللاسلكي:
  • IEEE 802.11n draft 2.0, IEEE 802.11b, IEEE 802.11g, 2.0 and 802.11e
Interface:
  • 1 x 10/100Mbps Auto-MDIX LAN port
LEDs:
Power, LAN, WPS, and Wireless
Power Supply:
12 V DC 0.5A external power adapter
Dimension:
  • 120 x 26 x 88 mm (4.7 x 1.0 x 3.4 in.)
